产品描述
Forklift attachments
1.经过验证和精心设计的手臂和T形臂杆确保平稳移动和良好的耐用性。
2.特殊设计的止回阀在没有第三个气缸的情况下提供侧移。
3. Low profile frame for good visibility over the clamp.
4. Superior slide bearing promises extended service life.
5. High quality PU/Nylon contact pads to ensure reliable clamping.
6. Regenerative hydraulic valve for optimal arm speed.
7. 2 pieces of truck auxiliary valves are necessary. 140bar≤ Working Pressure ≤ 180bar.
8. Fitting Screw M18X1.5-74° (concave); Recommended Hydraulic Pipe internal diameter = 10mm.
9. Option: Rotating; Sideshifting;
产品规格
Forklift clamp
Forklift attachment

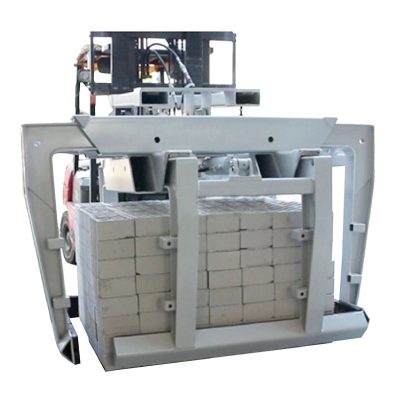

Block clamps
应用：
Used in palletless handling for tough loads, such as blocks, cement bricks.
特征：
坚固耐用的全钢结构，满足高效连续运行的要求。
Using soft & durable polyurethane pads, easy to replace.
合理的设计，可靠的世界顶级液压元件。
注意：
Two additional hydraulic circuits required on truck.
All products as listed are standard models, custom products can be provided according to the detailed requirements.
当然，您可以根据您的产品要求与我们联系，我们将提供符合您要求的型号。谢谢你的看法。
| 模型 | 容量/ 加载 中央 | 开盘 Kange | 有效厚度 | 横 中央 的 Gracity | 重量 | 臂长 | 框架宽度 | 安装 类 |
| d | C | CGH | 大号 | 乙 | ||||
| KG/MM | MM | MM | MM | KG | MM | MM | ||
| G25B20-166A21 | 2000/500 | 210-1660 | 135 | 335 | 610 | 1000 | 1140 | 2 |
| G25B20-166B21 | 3 | |||||||
| G25B20-166A41 | 340 | 640 | 1200 | 1140 | 2 | |||
| G25B20-166B41 | 3 | |||||||
| G25B25-166B21 | 2500/500 | 240-1660 | 140 | 330 | 710 | 1000 | 1140 | 3 |
| G25B25-166B41 | 335 | 750 | 1200 | 3 | ||||
| G25B30-166B21 | 3000/500 | 340-1660 | 145 | 310 | 740 | 1000 | 1140 | 3 |
| G25B30-166C21 | 4 | |||||||
| G25B20-166B41 | 800 | 1200 | 3 | |||||
| G25B30-166C41 | 4 | |||||||
| G25B30-166B61 | 860 | 1400 | 3 | |||||
| G25B30-166C61 | 4 |
